Electronic leak detector ST-382P

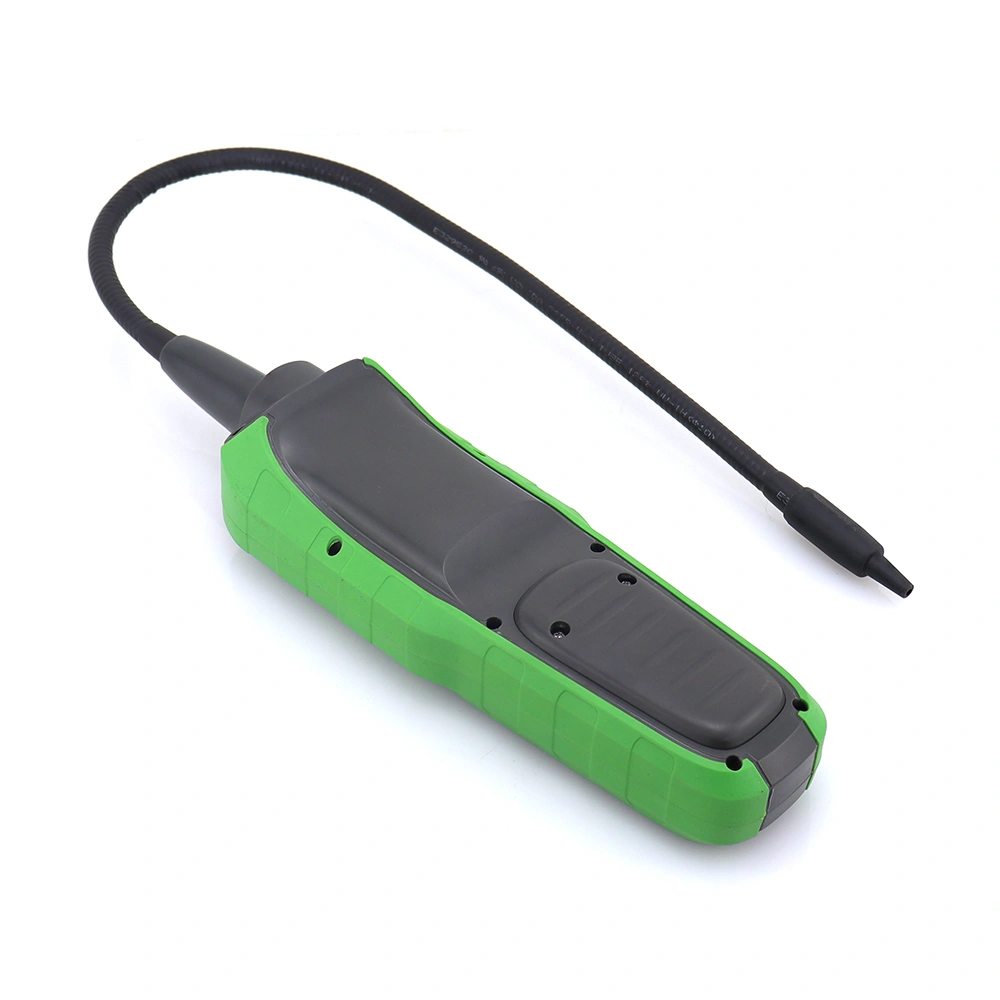

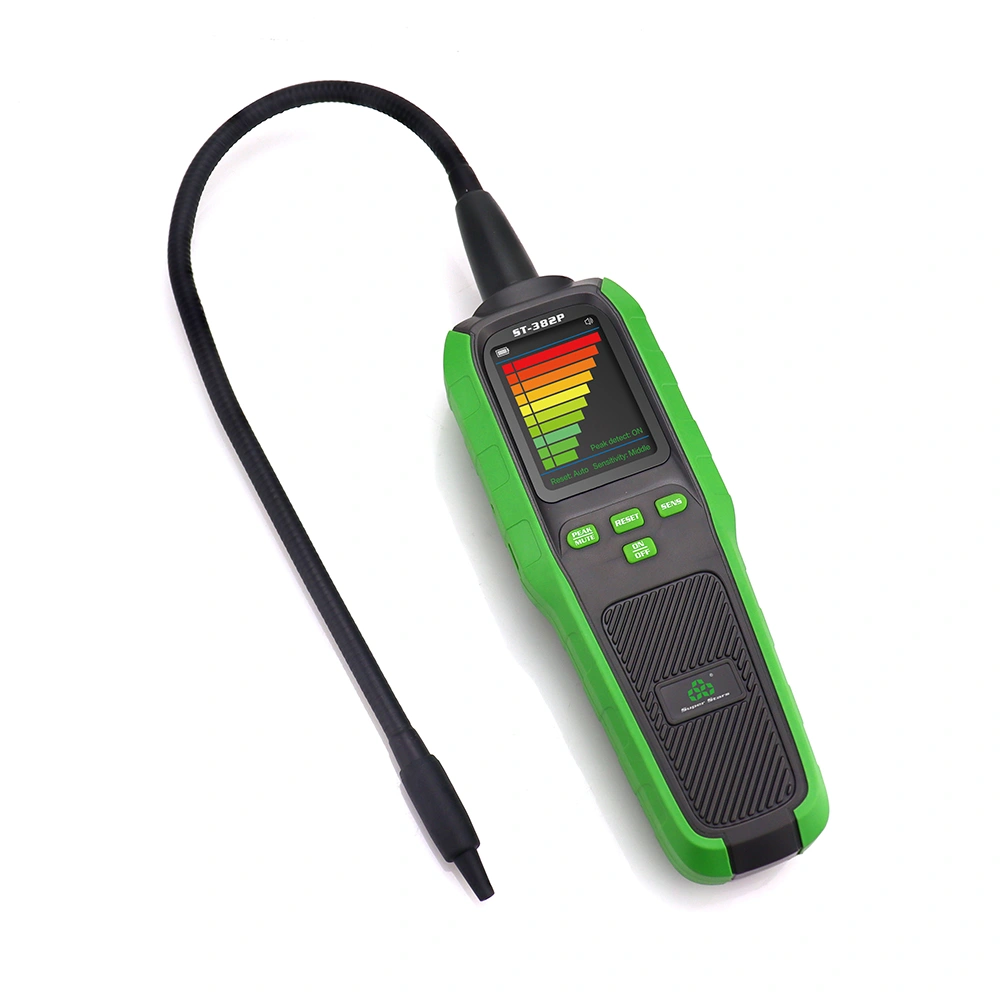

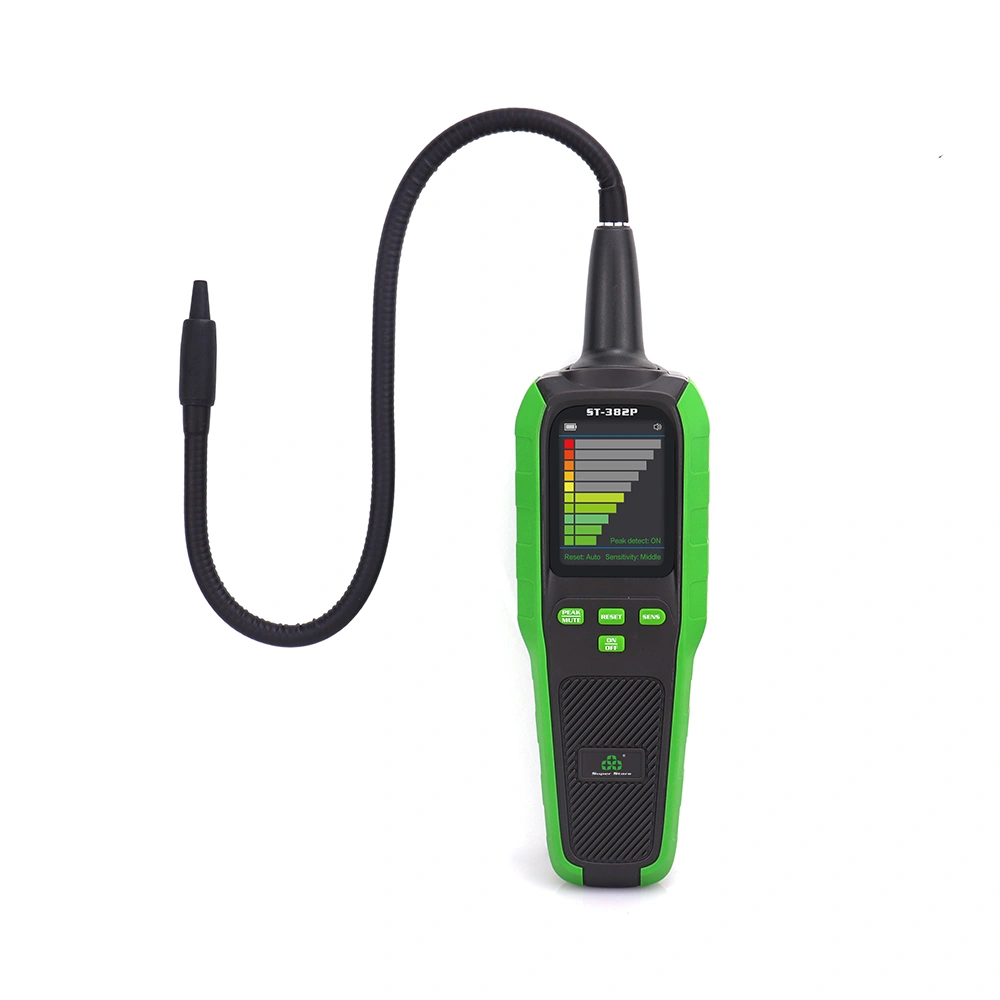

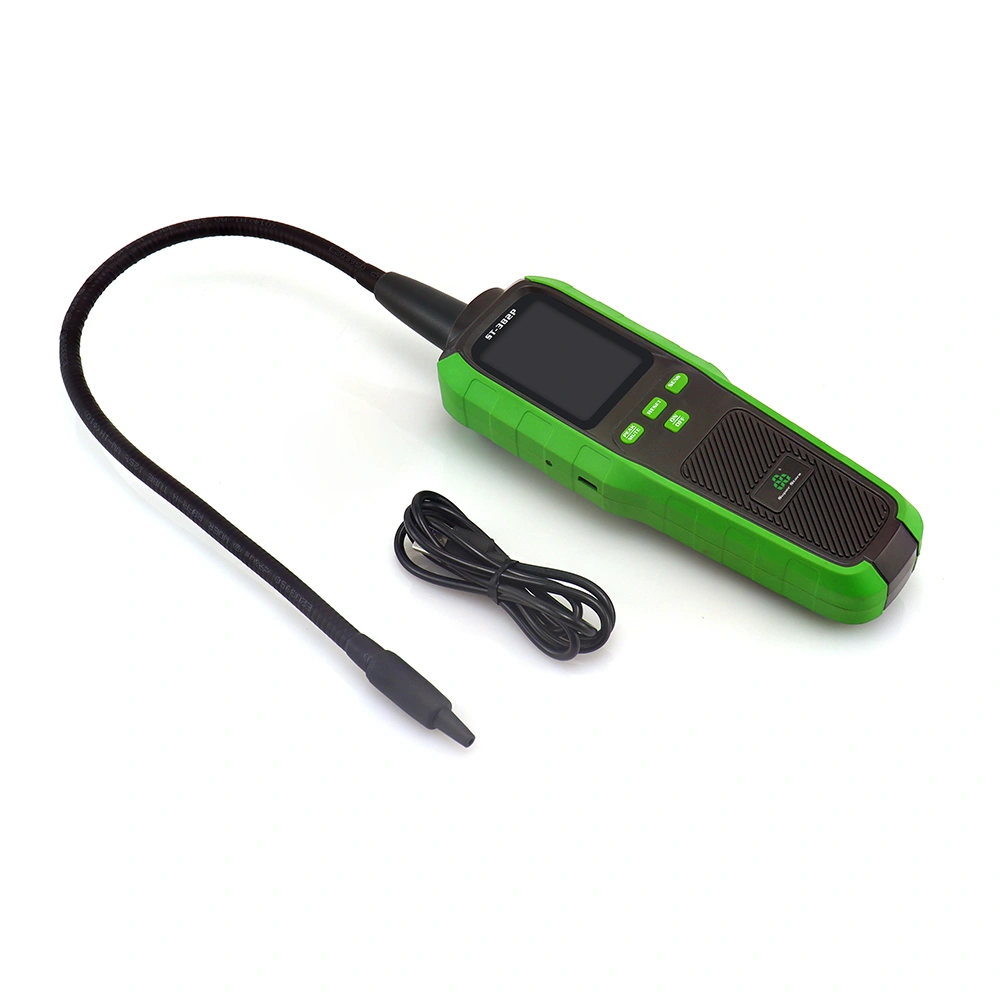

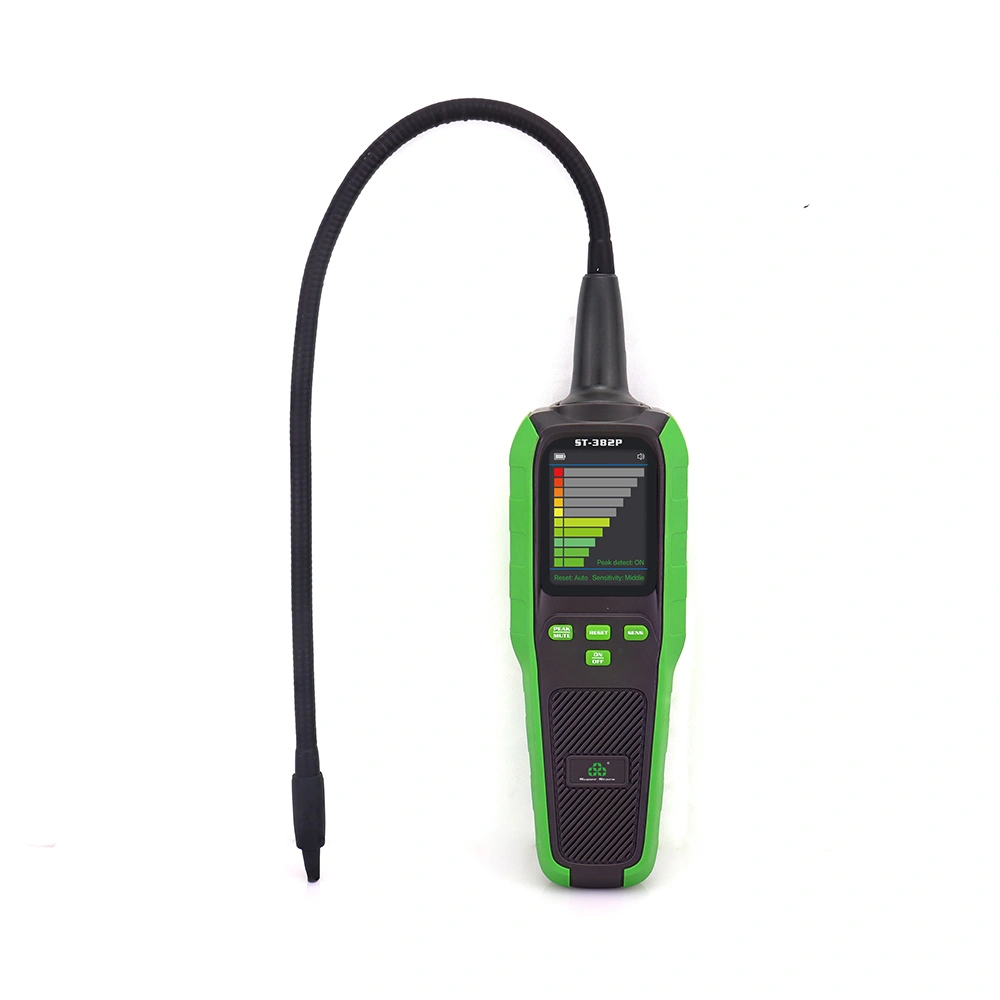

Electronic leak detector ST-382P with flexible probe

Description:

Super Stars ST-382P is an electronic leak detector designed for fast and precise detection of refrigerant leaks in air conditioning systems, refrigeration systems and automotive air conditioning systems. The device can be used during installation, periodic inspections and HVAC-R system diagnostics. The detector is compatible with a wide range of popular refrigerants, including R134a, R410A, R407C, R22 and R32. The minimum detectable leak rate is as low as 3 g/year for R134a, allowing the device to identify even minor leaks that may be difficult to locate using standard methods. At the same time, it complies with the requirements imposed on this type of instrument by European F-gas regulations. The ST-382P model is equipped with three sensitivity levels: low, medium and high. This allows the inspection to begin at high sensitivity and then precisely narrow down the leak location by switching the device to a lower level. The background concentration zeroing function eliminates the influence of refrigerant present in the surrounding environment and improves the accuracy of locating the source of the leak. The user can choose between automatic and manual reset modes. The built-in pump draws air from the inspected area, ensuring a fast response. Information about detected refrigerant is provided simultaneously by an audible signal and a clear, colour LCD display. As the refrigerant concentration increases, the intensity of the indication also increases, making it easier to pinpoint the exact leak location. The device also features a function for storing the highest detected leak level. The flexible stainless-steel probe, approximately 40 cm long, provides access to valves, connections and pipes located in hard-to-reach areas. The probe can be conveniently shaped and left in the selected position during system inspection. The built-in 3000 mAh lithium-ion battery provides up to approximately 7 hours of continuous operation. Charging is carried out using a USB cable, and a full charge takes approximately 3 hours. The automatic shut-off function after 10 minutes of inactivity helps reduce energy consumption. The ST-382P is a compact and easy-to-use tool for installers and service technicians looking for a portable detector for everyday diagnostics of air conditioning and refrigeration systems. Main advantages:
  • High sensitivity – leak detection down to 3 g/year for R134a.
  • Three sensitivity levels: low, medium and high.
  • Wide range of supported refrigerants, including R134a, R410A, R407C, R22 and R32.
  • Simultaneous audible and visual indication.
  • Large, colour LCD display showing the detected leak level.
  • Built-in pump for drawing in an air sample.
  • Function for storing the highest detected leak level.
  • Automatic or manual reset mode.
  • Function for zeroing the refrigerant concentration present in the surrounding environment.
  • Flexible probe made of stainless steel, approximately 40 cm long.
  • 3000 mAh lithium-ion battery providing up to approximately 7 hours of operation.
  • Automatic shut-off after 10 minutes of inactivity.
  • Compact design and low weight – approximately 400 g.

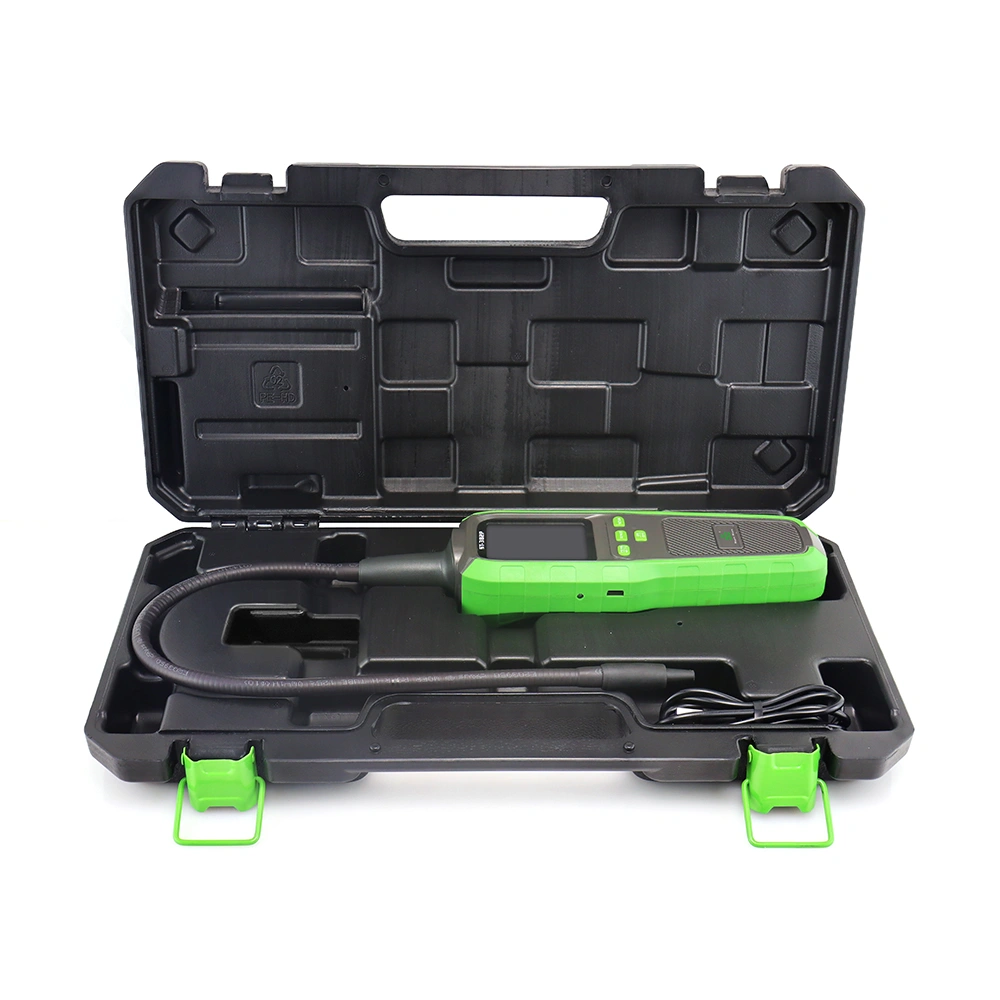

  • Transport case included.

151,95  (netto)

Technical data:

Compare

Additional information

Refrigerants detected

R290, R404A, R600A, R32, R22, R410A, R134A, R744, R1234yf, R454B, R515B, R513A, R1233ZD, R448A

Minimum detectable leak

≤3 g/year for R134a

Sensitivity levels

high, medium, low

Response time

about 2 seconds

Alarm procedure

sound signal and indication on the color LCD display

Zeroing the background concentration

yes

Resetowanie

automatic or manual

Pompka zasysająca

built-in

Długość elastycznej sondy

about 40 cm / 15,5″

Charging time

about 3 hours

Battery life

up to 7 hours of continuous use

Automatic switch off

after 10 minutes

Heating time

about 10 seconds

Operating temperature

0 °C – 40 °C

Storage temperature

–10°C to 60°C

Power supply

1 x 18650 lithium-ion battery

Maximum power consumption

6,0 A

Warranty

24 months

Dimensions

364 x 118 x 279 mm

Weight

0,40 kg

Contents of the set

leak detector, 18650 lithium battery, USB cable, user manual, carrying case

Features

Large, color LCD display
A clear presentation of the selected sensitivity level and the intensity of the detected leak facilitates work even in dimly lit technical rooms.
Three sensitivity levels
The ability to select high, medium or low sensitivity allows you to detect both a small leak and precisely pinpoint its source.
Background concentration reset function
It allows you to ignore the factor already present in the environment and more precisely locate the place where the leak is coming from
Flexible stainless steel probe
The approximately 40 cm long probe reaches hard-to-reach valves, connections, and system components. It can be freely contoured to fit the area being inspected.
Large, color LCD display
A clear presentation of the selected sensitivity level and the intensity of the detected leak facilitates work even in dimly lit technical rooms.
Three sensitivity levels
The ability to select high, medium or low sensitivity allows you to detect both a small leak and precisely pinpoint its source.
Background concentration reset function
It allows you to ignore the factor already present in the environment and more precisely locate the place where the leak is coming from
Flexible stainless steel probe
The approximately 40 cm long probe reaches hard-to-reach valves, connections, and system components. It can be freely contoured to fit the area being inspected.
